Input connectorsCH1-4 – Combo (XLR+6,35mm. jack) CH5 – Pin jack Tel – RJ11
-
Input sensitivityCH1-4 – Mic/Phantom: -50dBV
-
Signal-to-noise ratioMic >65dB Line >75dB Tel >65dB
-
Indicators5 MUTE LED for inputs 1 Bluetooth® PAIR LED 4 zone level indicators 1 monitor zone level indicator 1 ON LED
-
Frequency response (-3dB)60Hz-17KHz
-
EQ controls – HIGH/LOW+/-10 @ 10KHz
-

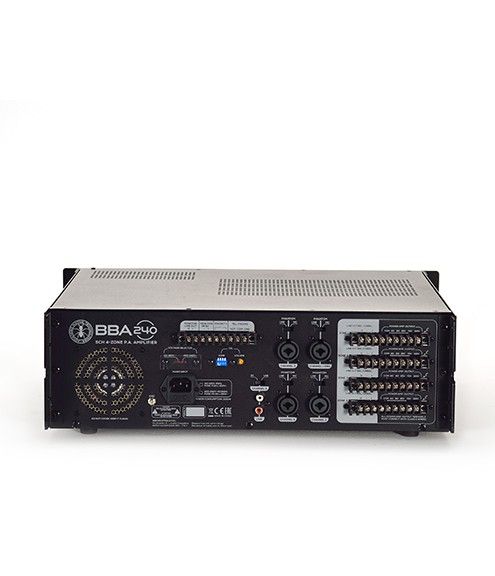

Output connectorsLine, Monitor & Speakers – Phoenix
-
Phones – 6,35mm. jack
-
POWER AMP. OUTPUT Power120W RMS x 4CH @ 4Ω
-
POWER AMP. OUTPUT connectionsConstant impedance – 4Ω/8Ω Constant voltage – 25V/70V/100V
-
Power supplySelectable 110-120V~ or 220-240V~
-
Power consumption1200W
-
Dimensions (WxHxD)483 x 133 x 395 mm
-
Weight7Kg
BBA-240
MULTI-ZONE SOUND CONTROL

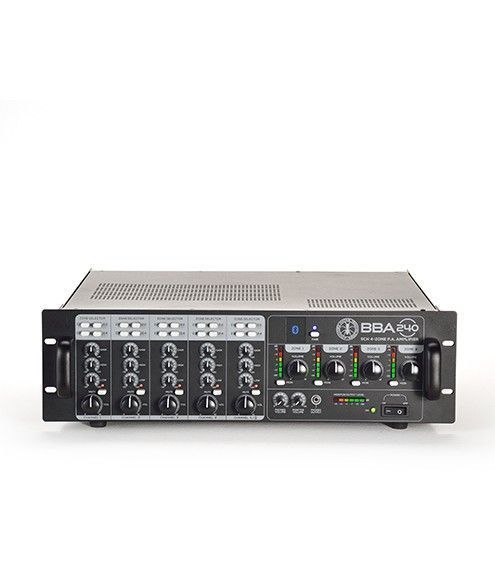

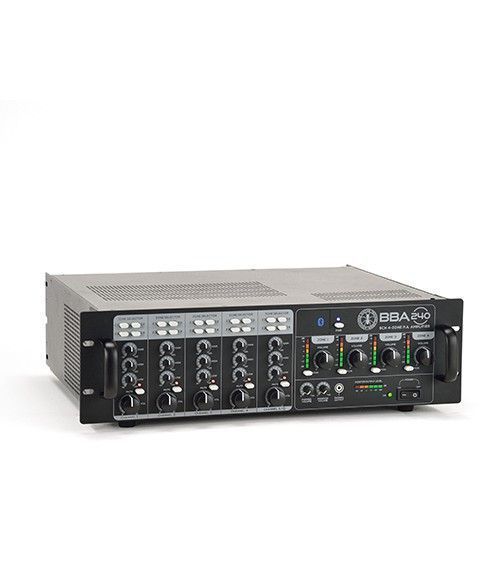

The ANT amplifier designed for the BBM P series is the ideal solution for sound reinforcement in multi-zone venues. With its essential and contemporary design, it combines professional features and usability in an optimal way. The BBA 240 is equipped with 5 selectable inputs: 4 IN mic/line and 1 for synch with Bluetooth devices. Each INPUT has gain and mute controls. BBA also has OUTs for 4 zones with the possibility of headphones or monitor pre-listening for each single zone and independent controls for each zone. The output for headphones or monitors is also equipped with independent controls.
| Peso | 7 kg |
|---|---|
| Dimensiones | 39,5 × 48,3 × 13,3 cm |
