ASM 10

ACTIVE COAXIAL STAGE MONITOR

ASM is an active 2-way coaxial stage monitor available in 3 models with 10, 12 or 15” woofers and 1” Compression Driver. Specially designed for an immediate use, ASM adapts to the needs of musicians of every kind.

Thanks to the ultra-efficient acoustic design and intuitive on-board controls, ASM always guarantees a professional performance.

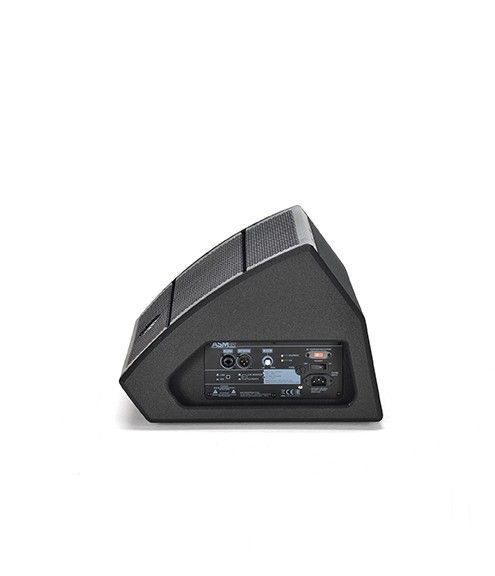

The side panel is equipped with a COMBO MIC/LINE IN (with a mode selection switch), LINK OUT, output level control and EQ presets (live or playback) enabling users to set the best signal management for every situation.

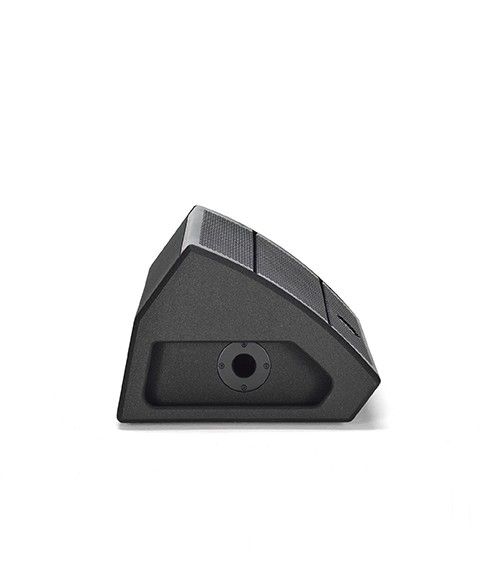

ASM stage monitor features an essential and contemporary design. The cabinet is equipped with side recessed handles. a 35 mm hole for a vertical installation on a tripod and is entirely covered with a highly resistant anti-scratch coating.

Padded covers are available as accessories.

    • Active 2-way stage monitor
    • Coaxial acoustic design
    • SPL up to 126 dB
    • INPUT  MIC/Line
    • OUTPUT  LINK
    • EQ Presets
    • Hole for 35 mm pole (vertical use)
    • Recessed side handle
    • Anti-scratch coating
SKU: 150102006 Categorías: ,

Descripción

  • System2-way vented box
  • LFCustom 10” Woofer, 2” VC
  • HF1” compression driver, 1” VC
  • AmplificationClass-D + Class-A/B
  • Peak power (LF+HF)400W
  • Frequency response (+/-10dB)70Hz-20kHz
  • MAX SPL122dB
  • DSP56Bit
  • AD/DA conversion24Bit / 48kHz
  • EQ2 Presets
  • Input and output connectorsMIC/LINE COMBO (XLR-F + 2 x jack 6.35mm. 1/4”) LINK output: XLR-M
  • ControlsLEVEL, LINE/MIC switch ON-PEAK/SIGN LEDs PRESET button
  • Operating mains Fuse220-240V~ 50-60Hz T2A L 250V~ 110-120V~ 50-60Hz T4A L 250V~
  • Max power consumption300 W
  • Cabinet2 recessed handles Pole mount Ø 35mm. hole
  • Cabinet material15mm plywood
  • Cabinets finishingAnti-scratch paint with high mechanical resistance
  • Dimensions (W x H x D)380 x 333 x 480 mm
  • Net weight12 Kg.
  • Optional accessoriesCV-SM10 padded cover

Información adicional

Peso 12 kg
Dimensiones 48 × 38 × 33,3 cm
