• System typeVented enclosure, 2-way
  • LF3.5″ custom speaker – 1″ V.C.
  • HF0.8″ neodynium dome tweeter
  • Amplification Type (LF+HF)Class D + Class A/B
  • Peak Power (LF+HF)80W
  • Frequency response (-10dB)140Hz-20kHz
  • SPL – MAX103 dB
  • I/O connectorsCH1 MIC/LINE: 6,35 mm (1/4″) jack
    CH2 IN: 3,5 mm . mini-jack
    LINE OUT: 6,35 mm (1/4″) jack
  • ControlsCH1 LEVEL, LINE/MIC switch, CH2 LEVEL.
  • Power supply220-240V ~ 50-60Hz
  • FuseT800mA L 250 V
  • Power Consumption40W
  • Suspension system2 M6 – top/under for U bracket mouth
    4 M5 – rear for Y and SA brackets
  • MaterialsInjection-Molded ABS cabinet
    Perforated Steel Grille
  • Dimensions (W x H x D)5.29″(134.3mm) x 8.68″(220.4mm) x5.37″(136.4mm)
  • Weight2.1 Kg 4.63 lbs

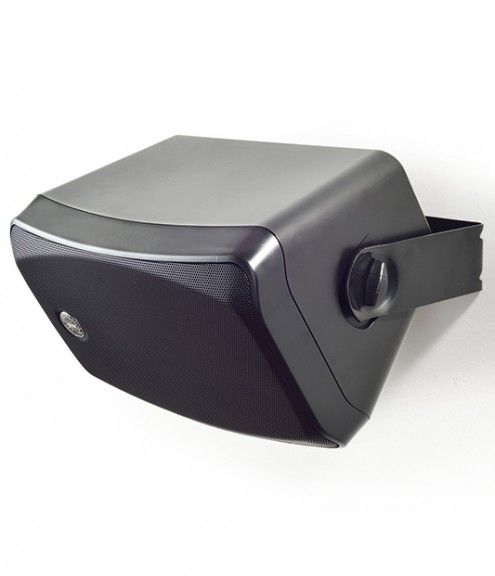

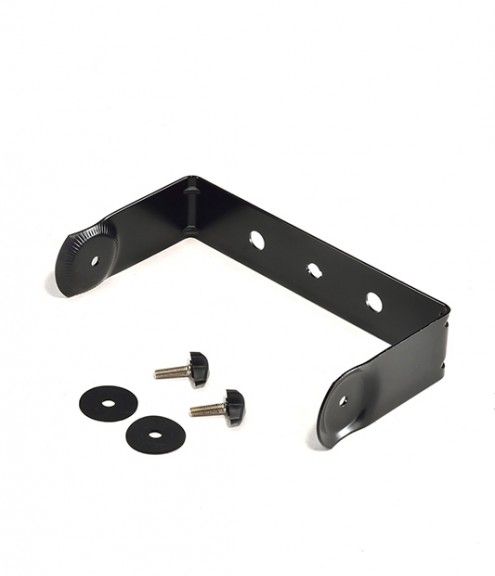

  • Brackets kit for wall mountingBBM-WB3U

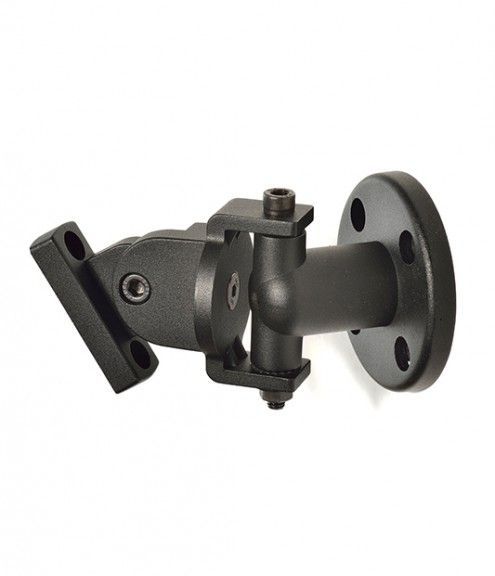

  • Brackets rotation and tilting kit for wall/ceiling mountingBBM-358Y
  • Tripod mount kitBBM-SA30
SKU: 150101007 Categorías: ,

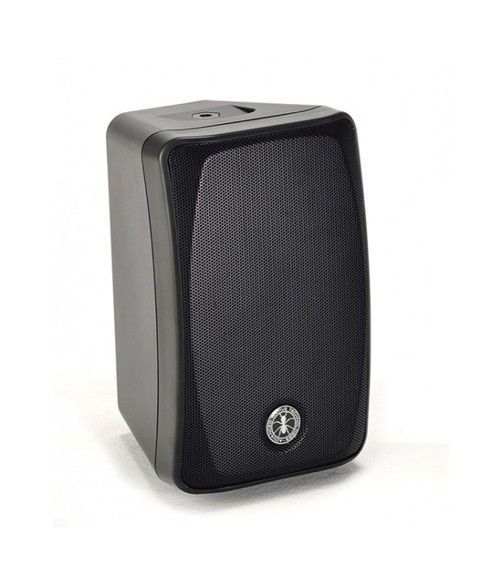

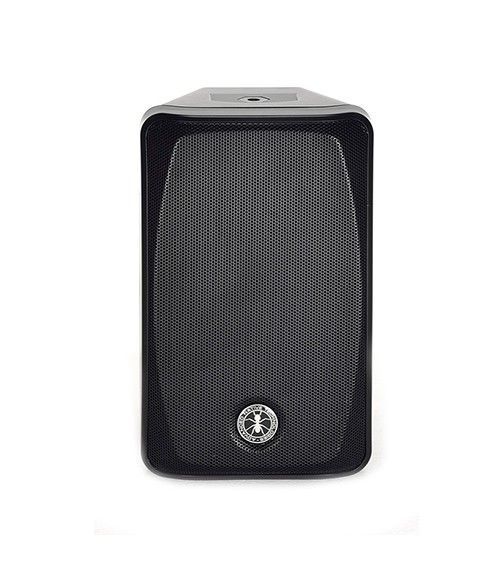

BBM 3 is the most compact 2-way speaker in ANT family. A pretty easy solution for small portable applications, BBM 3 also acts as unobtrusive installation; the cabinet can be easily fixed on wall thanks to custom accessories BBM WB3U (U bracket). Alternatively, the kit BBM-358 Y allows to fix the cabinet on walls or ceiling and modify orientation and tilt.

The BBM SA-30 kit is also available specifically for tripod mounting in small portable applications.

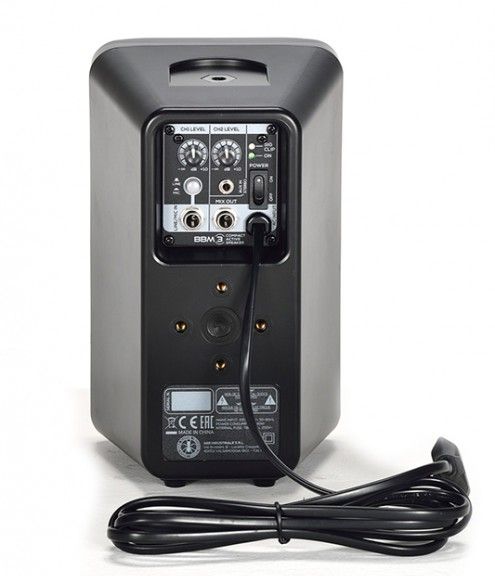

The speaker is equipped with 2 INPUT channels with separate level management: CH 1 mic/line (selectable with switch button) with jack connection and CH 2 with minijack connection. The OUT channel (jack) allows link to another BB; speaker.

BBM’s great versatility is completed by a clear, undistorted sound performance even at high sound pressure levels (up to 103 dB): the CLIP led indicates when the signal get distorted. In that case you only need to turn down levels of active IN channels.

    • Two-way active speaker
    • Max 103 dB SPL
    • Ready for fixed installation (accessories not included)
    • 2 INPUT CHANNELS (mic/line and line)
    • Independent level management
    • 1 OUT channel
    • Anti-distortion CLIP led
