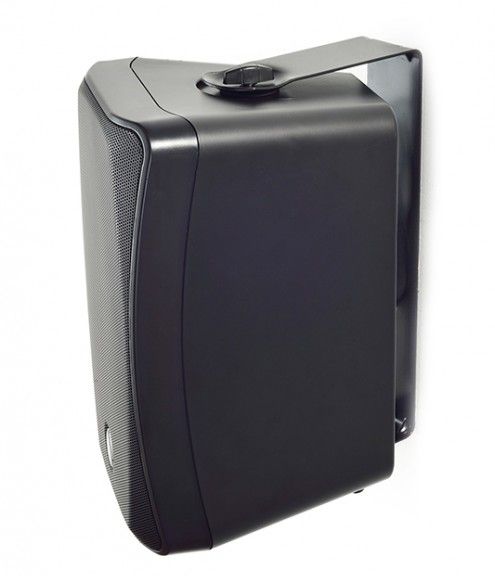

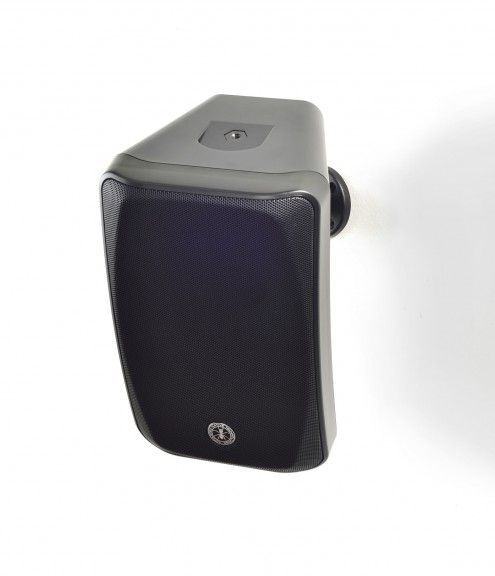

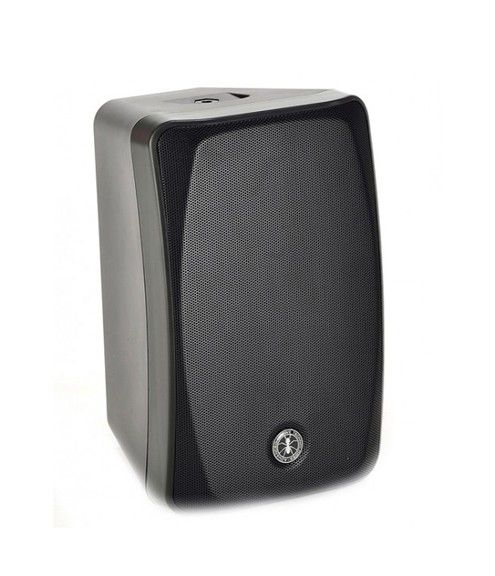

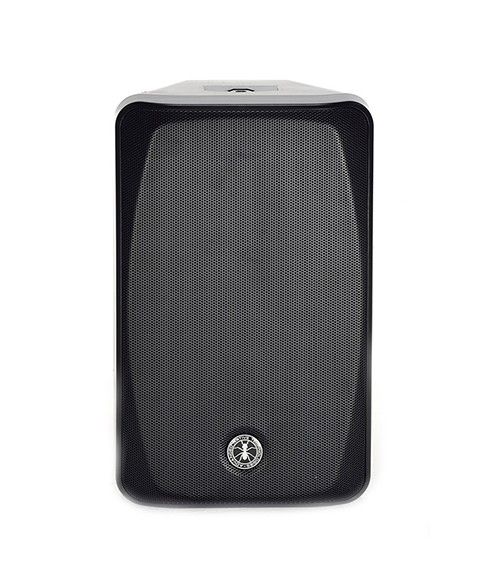

BBM 5 is a compact, easy solution for small portable applications, but also for unobtrusive installations; the cabinet can be easily fixed on wall thanks to custom accessories BBM WB5U (U bracket). Alternatively, the kit BBM-358 Y allows to fix the cabinet on walls or ceiling and modify orientation and tilt.

The BBM SA-50 kit is also available specifically for tripod mounting in small portable applications.

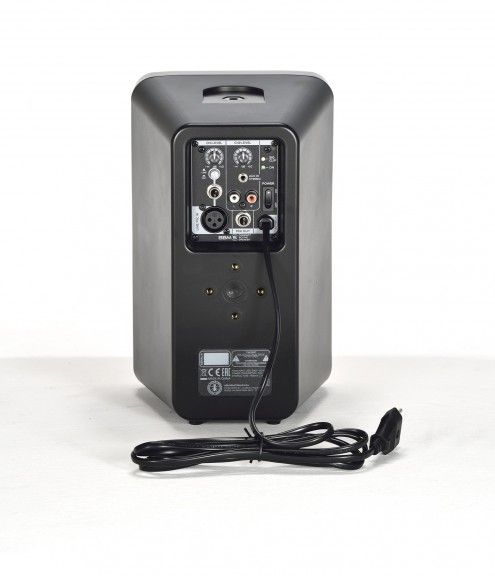

The speaker is equipped with 2 INPUT channels with separate level management: CH 1 mic/line (selectable with switch button) with jack and XLR-F connection and CH 2 with minijack connection. The OUT channel (jack) allows link to another BBM speaker.

BBM’s great versatility is completed by a clear, undistorted sound performance even at high sound pressure levels (up to 109 dB): the CLIP led indicates when the signal get distorted. In that case you only need to turn down levels of active IN channels.

  • Two-way active speaker
  • Max 109 dB SPL
  • Ready for fixed installation (accessories not included)
  • 2 INPUT CHANNELS (mic/line and line)
  • Independent level management
  • 1 OUT channel
  • Anti-distortion CLIP led

Disponible para reserva

SKU: 150101008 Categorías: ,


  • System typeVented enclosure, 2-way
  • LF5″ custom speaker – 1″ V.C.
  • HF1″ neodynium dome tweeter
  • Amplification Type (LF+HF)Class D + Class A/B
  • Peak Power (LF+HF)100W
  • Frequency response (-10dB)100Hz-20kHz
  • SPL – MAX109 dB
  • I/O connectorsCH1 MIC IN: XLR-F
    CH1 LINE IN: 6,35 mm (1/4″) jack
    CH2 IN: 3,5 mm. mini-jack and 2 RCA
    LINE OUT: 6,35 mm (1/4″) jack
  • ControlsCH1 LEVEL, LINE/MIC switch, CH2 LEVEL.
  • Power supply220-240V ~ 50-60Hz
  • FuseT800mA L 250 V
  • Power Consumption70W
  • Suspension system2 M6 – top/under for U bracket mouth
    4 M5 – rear for Y and SA brackets
  • MaterialsInjection-Molded ABS cabinet
    Perforated Steel Grille
  • Dimensions (W x H x D)6.71″(170.5mm) x 10.7″(272mm) x6.76″(171.8mm)
  • Weight3.7 Kg 8.16 lbs

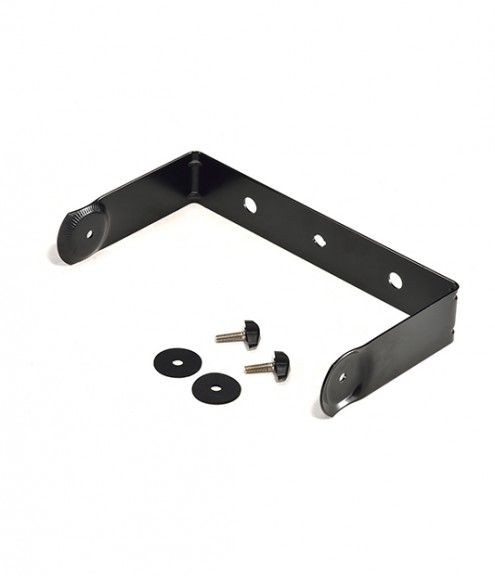

  • Brackets kit for wall mountingBBM-WB5U
  • Brackets rotation and tilting kit for wall/ceiling mountingBBM-358Y
  • Tripod mount kitBBM-SA50

Información adicional

Peso 3.7 kg
Dimensiones 17.18 × 17.05 × 27.2 cm
