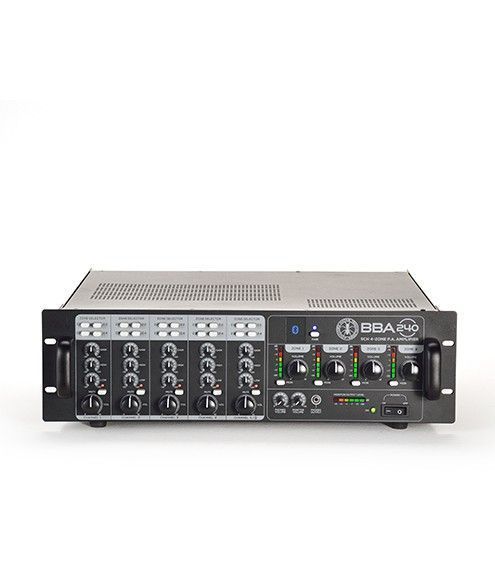

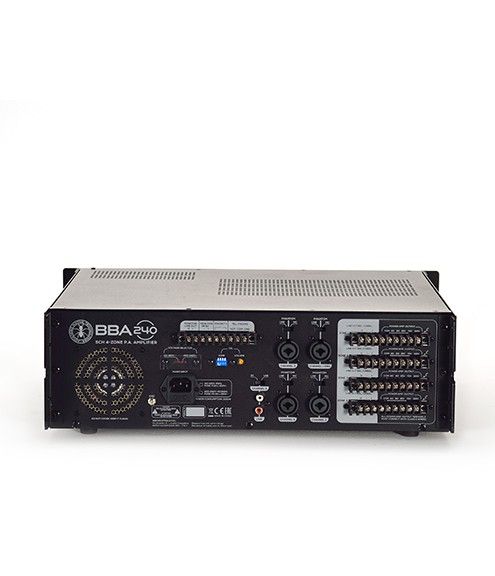

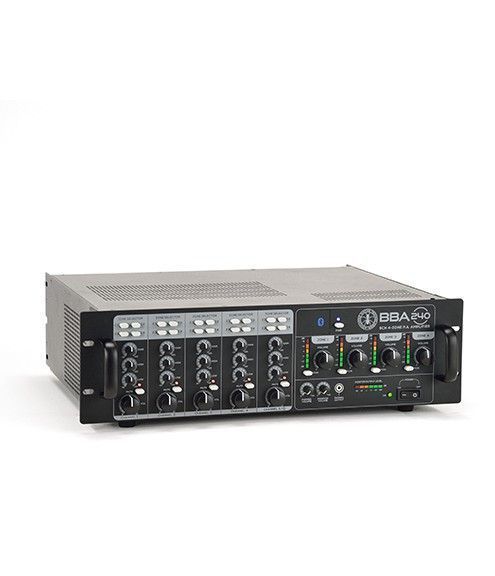

BBA-240

MULTI-ZONE SOUND CONTROL

The ANT amplifier designed for the BBM P series is the ideal solution for sound reinforcement in multi-zone venues. With its essential and contemporary design, it combines professional features and usability in an optimal way. The BBA 240 is equipped with 5 selectable inputs: 4 IN mic/line and 1 for synch with Bluetooth devices. Each INPUT has gain and mute controls. BBA also has OUTs for 4 zones with the possibility of headphones or monitor pre-listening for each single zone and independent controls for each zone. The output for headphones or monitors is also equipped with independent controls.

SKU: 150111000 Categorías: ,

Descripción

  • Input connectorsCH1-4 – Combo (XLR+6,35mm. jack)
CH5 – Pin jack
Tel – RJ11
  • Input sensitivityCH1-4 – Mic/Phantom: -50dBV
  • Signal-to-noise ratioMic >65dB
Line >75dB
Tel >65dB
  • Indicators5 MUTE LED for inputs
1 Bluetooth® PAIR LED
4 zone level indicators
1 monitor zone level indicator
1 ON LED
  • Frequency response (-3dB)60Hz-17KHz
  • EQ controls – HIGH/LOW+/-10 @ 10KHz
  • Output connectorsLine, Monitor & Speakers – Phoenix
  • Phones – 6,35mm. jack
  • POWER AMP. OUTPUT Power120W RMS x 4CH @ 4Ω
  • POWER AMP. OUTPUT connectionsConstant impedance – 4Ω/8Ω
Constant voltage – 25V/70V/100V
  • Power supplySelectable 110-120V~ or 220-240V~
  • Power consumption1200W
  • Dimensions (WxHxD)483 x 133 x 395 mm
  • Weight7Kg

Información adicional

Peso 7 kg
Dimensiones 39,5 × 48,3 × 13,3 cm
