BBM 8

192,39 IVA incluido

COMPACT INSTALLATION ACTIVE SPEAKERS

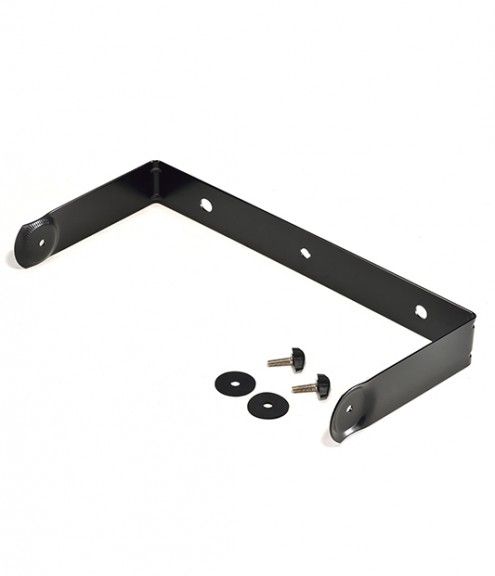

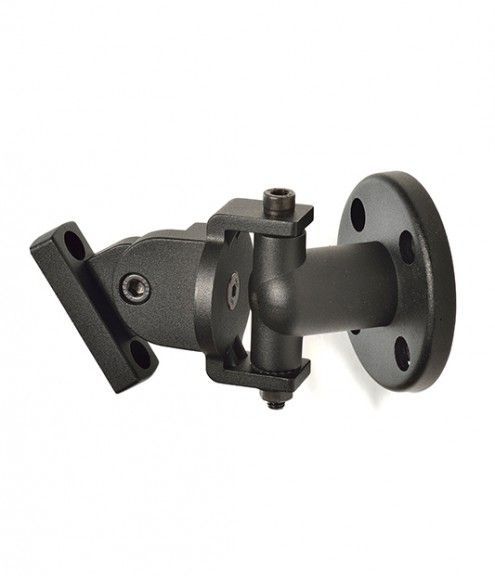

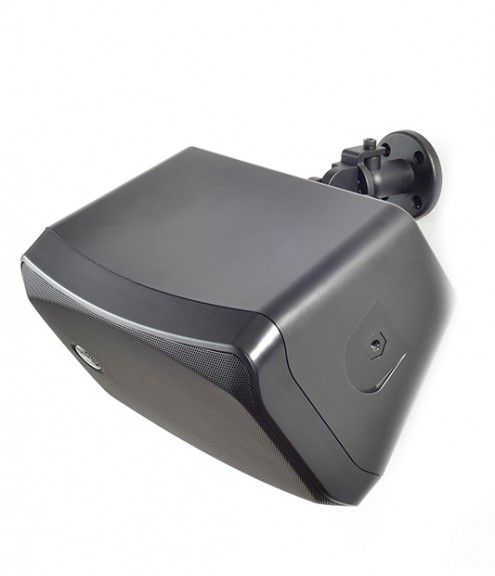

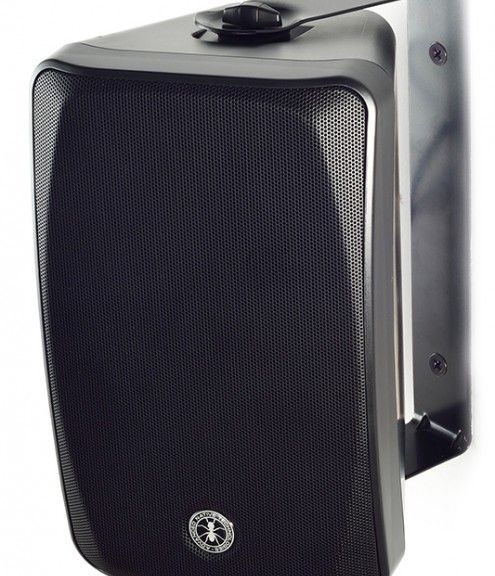

BBM 8 is a compact, easy solution for small portable applications, but also for unobtrusive installations; the cabinet can be easily fixed on walls thanks to custom accessories BBM WB8U (U bracket). Alternatively, the kit BBM-358 Y allows to fix the cabinet on walls or ceiling and modify orientation and tilt.

The BBM SA-80 kit is also available specifically for tripod mounting in small portable applications.

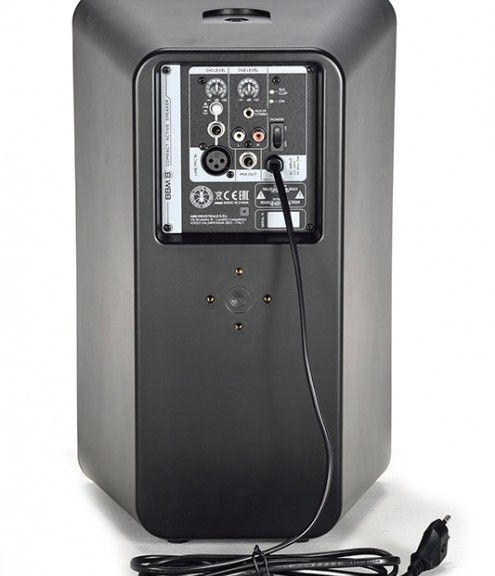

The speaker is equipped with 2 INPUT channels with separate level management: CH 1 mic/line (selectable with switch button) with jack and XLR-F connection and CH 2 with minijack connection. The OUT channel (jack) allows link to another BBM speaker.

BBM’s great versatility is completed by a clear, undistorted sound performance even at high sound pressure levels (up to 112 dB): the CLIP led indicates when the signal get distorted. In that case you only need to turn down levels of active IN channels.

    • Two-way active speaker
    • Max 112 dB SPL
    • Ready for fixed installation (accessories not included)
    • 2 INPUT CHANNELS (mic/line and line)
    • Independent level management
    • 1 OUT channel
    • Anti-distortion CLIP led

Disponible para reserva

SKU: 150101009 Categorías: ,

Descripción

  • System typeVented enclosure, 2-way
  • LF8″ custom speaker – 1″ V.C.
  • HF1″ neodynium dome tweeter
  • Amplification Type (LF+HF)Class D + Class A/B
  • Peak Power (LF+HF)120W
  • Frequency response (-10dB)55Hz-20kHz
  • SPL – MAX112 dB
  • I/O connectorsCH1 MIC IN: XLR-F
    CH1 LINE IN: 6,35 mm (1/4″) jack
    CH2 IN: 3,5 mm. mini-jack and 2 RCA
    LINE OUT: 6,35 mm (1/4″) jack
  • ControlsCH1 LEVEL, LINE/MIC switch, CH2 LEVEL.
  • Power supply220-240V ~ 50-60Hz
  • FuseT800mA L 250 V
  • Power Consumption70W
  • Suspension system2 M6 – top/under for U bracket mouth
    4 M5 – rear for Y and SA brackets
  • MaterialsInjection-Molded ABS cabinet
    Perforated Steel Grille
  • Dimensions (W x H x D)9.84″(250mm) x 15.75″(400mm) x9.88″(251mm)
  • Weight6.3 Kg 13.89 lbs
  • Brackets kit for wall mountingBBM-WB8U
  • Brackets rotation and tilting kit for wall/ceiling mountingBBM-358Y
  • Tripod mount kitBBM-SA80

Información adicional

Peso 6.3 kg
Dimensiones 25.1 × 25 × 40 cm
